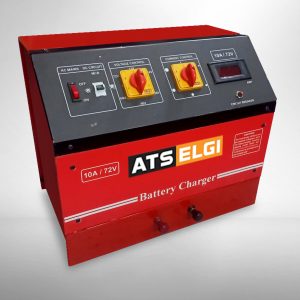

BATTERY CHARGER 10 AMPS 72V
ATS ELGI Professional Manual Battery Charger for charging all types of batteries (WET) with selectable 12/24/36/48/60/72V voltage that are attached to regardless of the battery’s charge level.
Designed for use in workshops, garages, battery service stations and retail outlets, where there is a requirement for charging 6 batteries simultaneously in series.
They do not cycle or shut down by themselves. A voltmeter or hydrometer is required to check the battery condition periodically and switch off the charger, once the batteries are fully charged.
The output is fused through a miniature circuit breaker that has been placed on top of the unit to prevent accidental short circuits from occurring during operation.
ApplicationFeaturesBenefitsSpecificationsRequest a Quote
- For conventional Battery Charger
- For 4 Wheeler Battery
- Series Battery Charging
- Robust metal body
- Ampere meter for Display Amps of Battery
- Selector switch for Amp selection
- Selector switch for Volt selection for no. of battery connected
- Available for 4, 6, 8, & 10 Amps Battery Charging
- Protection for overload (MCB)
- Low Maintenance
- Cost effective
- Extend battery life
- Simple to use
| Parameter | Specification |
| Test Range | 25 Ah to 80 Ah Battery |
| Charging current | Max. 10 Amps |
| Supply voltage | 220 V, 50 Hz |
| No. of battery charged | Max. 6 Batteries selectable (12V Each) |
| Battery type charged | Lead acid batteries |
| Unit dimension | 420 x 250 x 350 mm approx. |
| Unit weight | 19 Kg approx. |
