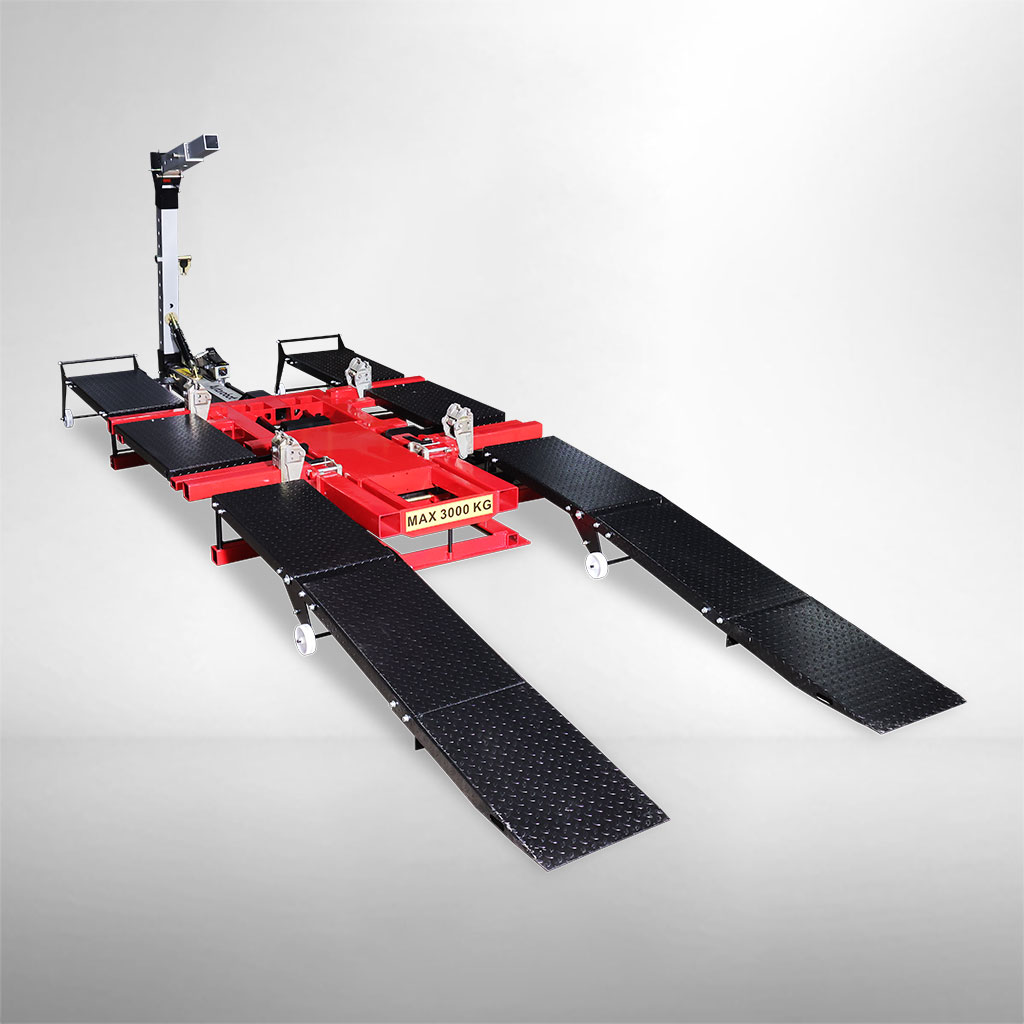

BENCH Model – B10
Universal equipment for car body repair.
The system is equipped with:-
- Drive-on ramps and scissor lift, which make car fastening easy and quick.
- Structure of the straightening bed is specially designed for easy access to vehicle chassis for straightening, measurement, re-assembly, service and other repair jobs in the car (vehicle) chassis.
Model : B10
Product FeaturesSpecificationsCatalogueRequest a Quote
- Super-quick vehicle fastening with single-bolt sill clamps and straightening bed scissor lift
- Quick straightening to all directions (upwards/downwards, sideways)
- Works also on demanding chassis straightening with long-structured equipment
- Suitable also as a lift, e.g., in car re-assembly
- Advanced work ergonomics
- Affordable to expand, e.g., to a multi work station system
| Parameters | Specification |
|---|---|
| Lifting capacity | 3000 kg |
| Lifting height | 1.5 m / 4.9 ft |
| Pulling force | Approx. 10 t |
| Required Power | Air pressure |
| Required floor space | 4.5 x 7 m /14.8 x 23 ft (with drive-on ramps attached) |
| Weight (approx.) | 1000 kg |
